Electronic Bow
​
custom design and build of an electronic bow (or e-bow)
​
continuously vibrates a guitar string
​
produces a sound similar to a violin bow
Circuit Board
​
contains all electrical components
​
connections for battery and LED
​
pick-up and drive coils on underside

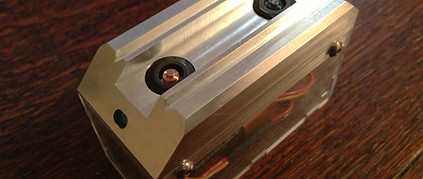

Base Housing
​
machined from aluminum
​
mounts for circuit board and acrylic cover
​
holes for pick-up and drive coils as well as LED
​
string grooves to keep e-bow centered over the drive string
How It Works
​
a pick-up coil detects string vibrations
​
an amplifier uses the energy stored in the battery to increase the amplitude of that signal
​
the amplified signal is sent to a drive coil, which causes the amplitude of the string's vibration to increase
​
this increased vibration is detected by the pick-up coil, creating a continuous positive feedback loop
(found online)
